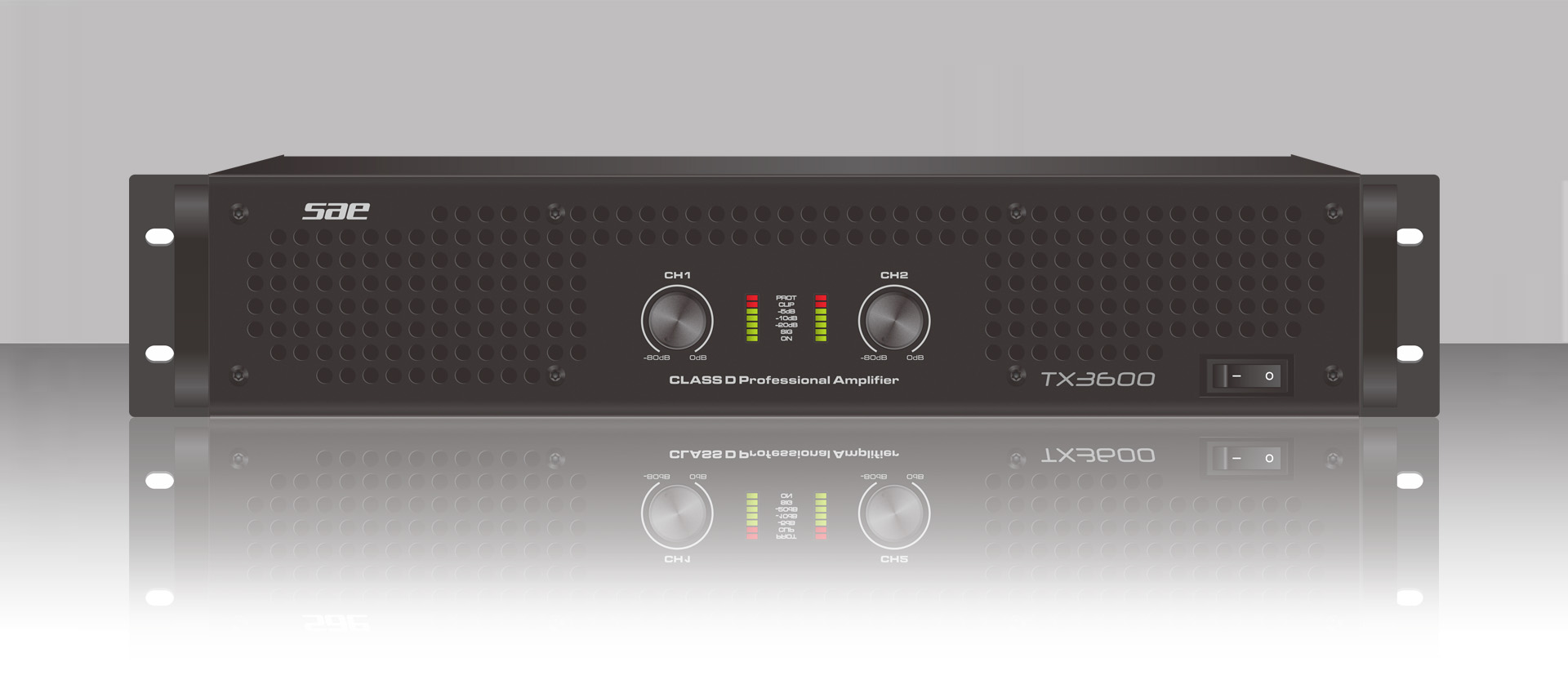

• TX-F

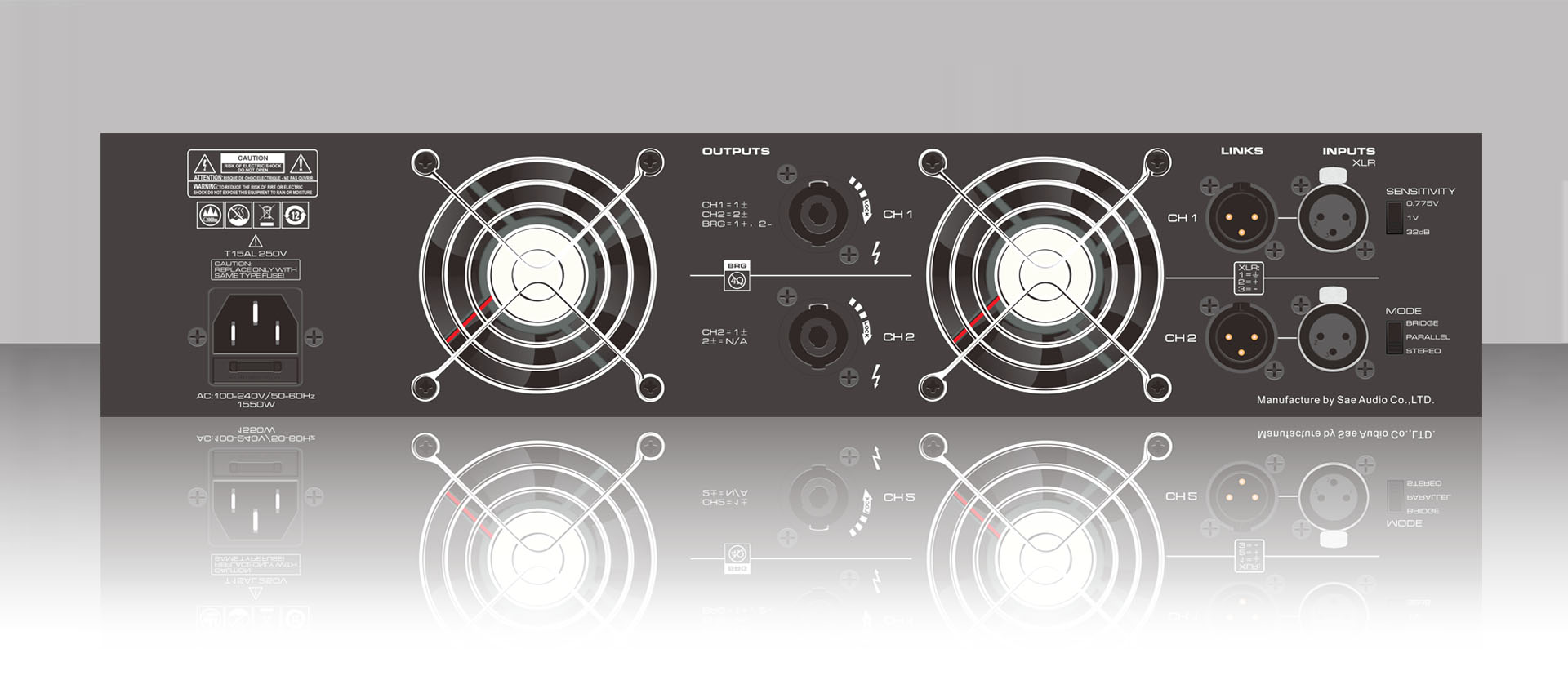

  • TX-B



TX series Datasheet

TX series

The TX series of power amplifiers by SAE Audio are a very versatile and efficient yet affordable option for those requiring an all-purpose device. Implementing Power Factor Correction technology along with Universal Mains Regulated SMPS power supply and Class D power modules, the TX series combines in the same amplifier all the functional requirements found on most sound reinforcement applications.

Features

  • Class D power modules.
  • Universal mains Regulated SMPS.
  • XLR signal input and link connectors.
  • SpeakON NL4 and binding-post output connectors.
  • Input sensitivity selector on the back panel (0.775v / 1v / 32dB).
  • Routing mode selector on the back panel (stereo / bridge /parallel).
  • Channel independent protection and clip warning indicators on the front panel.
  • Channel independent power and -5dB / -10dB / -20dB / signal presence indicators on the front panel.
  • Low unit weight( TX800-TX3600 ).

Applications

  • Sound reinforcement applications with mid power density and good sounding requirements.
  • Small to mid sized bar/café/lounge installation.
  • Portable or rental industry PA system.

Specifications

Model TX800 TX1200 TX2400 TX3600
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo* 300W x2* 500W x2* 700W x2* 1000W x2*
4Ω Stereo** 500W x2** 850W x2** 1250W x2** 1750W x2**
8Ω Bridge** 1000W** 1700W** 2500W** 3500W**
Other specifications
Frequency Response 20Hz – 20kHz, (+0/-1dB)
THD+N ≤ 0.15% ≤ 0.15% ≤ 0.15% ≤ 0.15%
S/N Rate ≥ 100dB ≥ 100dB ≥ 100dB ≥ 100dB
Damping Factor ≥ 500 ≥ 500 ≥ 500 ≥ 500
Input sensitivity 0.775V/1v/32dB 0.775V/1v/32dB 0.775V/1v/32dB 0.775V/1v/32dB
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ
Voltage Gain 36dB 38.2dB 39.7dB 41.2dB
Cooling Air flow from front to rear Air flow from front to rear Air flow from front to rear Air flow from front to rear
Dimension / Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.)
Product Dimensions (mm) 483 x 306.5 x 89 483 x 306.5 x 89 483 x 306.5 x 89 483 x 306.5 x 89
Packaging Dimension(mm) 560 x 420 x 170 560 x 420 x 170 560 x 420 x 170 560 x 420 x 170
G.W. 6.9kg 7.2kg 7.45kg 7.9kg

Remark:
1、The power is tested under EIA standard.
2、*,The power is tested under the condition of 40ms burst,1kHz sine wave and 1% THD.
3、**,The power is tested under the condition of 20ms burst,1kHz sine wave and 1% THD.
4、SAE reserves the right to make any changes to the product  specifications without prior notice. Final specifications to be found in the user manual.
