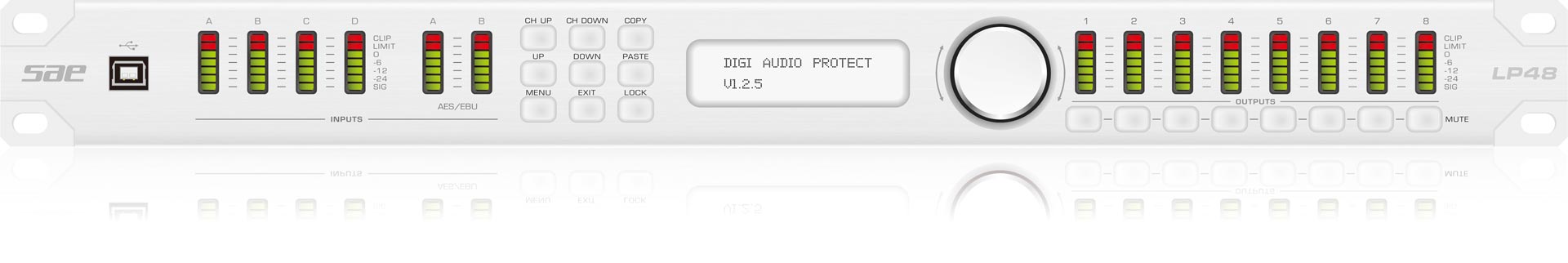

LP48 Loudspeaker Processor
|
German chip Multilingual Password protection |
Features
| 4 balanced XLR inputs and 8 matched impedance XLR outputs. 96kHz sampling rate with 24bit depth. 64 bit digital signal processing. 110dB dynamic range on inputs. 114dB dynamic range on outputs. Nominal input level at 0dBu. Maximum input level at 23dBu. Nominal output level at 0dBu. Maximum output level at 12dBu. Frequency range from 10Hz to 40kHz. Processing latency below 1ms. 16 character LCD display. 100 presets memory on hardware unit. 220v / 110v AC mains selector. |
Specifications
| Model | LP48 | |
|---|---|---|
| Inputs | Four ways Balanced inputs | |
| Outputs | Eight ways unbalanced outputs | |
| Input impedance | ≥ 10kΩ | |
| Outputs impedance | ≤ 60Ω | |
| Output gain | From +12dB to -50dB, 0.25dB increment | |
| Input gain | From +12dB to -50dB, 0.25dB increment | |
| Other specifications | ||
| Frequency response(-0.3dB) | 20Hz – 20kHz | |
| THD+N | ≤ 0.05% | |
| Max delay | 5ms | |
| Dynamic range | ≥80dB | |
| Converts Frequency (high pass/ low pass) | 20Hz – 20kHz, 1Hz increment | |
| Centre Frequency (high pass/ low pass) | 20Hz – 20kHz, 1/36 octave (19980 positions) increment | |
| Minimun Load Inpedance | 600Ω | |
| Maximum Output Level | +9dBu (600 ohms load) | |
| Filter Gain | From +12dB to -50dB, 0.25dB increment | |
| High Pass & Low Pass Filter | Q value 0.2-0.25 adjustable, 0.1 increment/ 10 bands/1 filter each output channel, open and close |
|
| Frequency Response | Bessel/ Butterworth 6/12/18/24dB each octave, and Linkwitz-Riley 24dB/ octave | |
| Protect Function | System can be set code which can prevent unauthorized person operation. | |
| Product dimensions(mm) | 482 x 125 x 44.5（1U） | |
| Package dimensions(mm) | 525 x 195 x 110（1U） | |
| G.W | 3kg | |
| Power Consumption | ≤10W | |
Remark：
SAE Audio reserves the rights to make changes in specification without prior notice.
The final specification is subject to the user’s manual.
