GT1502
The new X series is designed for vocal singing, with high resolution and high dynamic performance. The sound is clear, smooth, dense, and powerful, with a sense of graininess and dynamic energy. It makes the overall sound thicker and warmer, making it easy to sing and giving it a large dynamic range. It is not prone to cracking sounds and is suitable for today’s mainstream KARAOKE style. The new X series is easy to operate, stable in operation, and versatile in use. In addition to karaoke, it is also suitable for language sound reinforcement, small and medium-sized performances, conferences, music cafes, multi-function halls, and other occasions.
Features
- With high quality toroidal transformer for power supply.
- High efficiency Class I™ power modules.
- XLR input and Neutrik SpeakON NL4.
- Input sensitivity selector on the back panel (0.775v / 1.0v / 32dB).
- Routing mode selector on the back panel (stereo / bridge / parallel).
- There is a power circuit breaker on the rear panel
- The front panel has independent channels, peak shaving warning, signal indicator lights, protection and power indicator lights
- Scan the QR code on the back panel to permanently save the electronic manual, ensuring accurate information and convenient use
- CNC original color alumina alloy matte black panel, stylish and unique design
Specifications
| Model | GS1502 |
| Output power | (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%) |
| 8Ω Stereo | 1500W x2 |
| 4Ω Stereo | 2200W x2* |
| 2Ω Stereo | |
| 8Ω Bridge | 4400W* |
| Other specifications | |
| Frequency Response | 20Hz – 20kHz(+0/-1dB) |
| THD+N | ≤ 0.06% |
| S/N Rate | ≥ 98dB |
| Input Sensitivity | 0.775/1.0V/32dB |
| Input Impedance (bal/unbal) | 20kΩ / 10kΩ |
| Voltage Gain | 43dB |
| Output circuitry | Class I™ |
| Cooling | Air flow from front to rear |
| Connector | |
| Input | Balance input XLR-F, Balance output XLR-M |
| Outpu | NL4 SPEAKON |

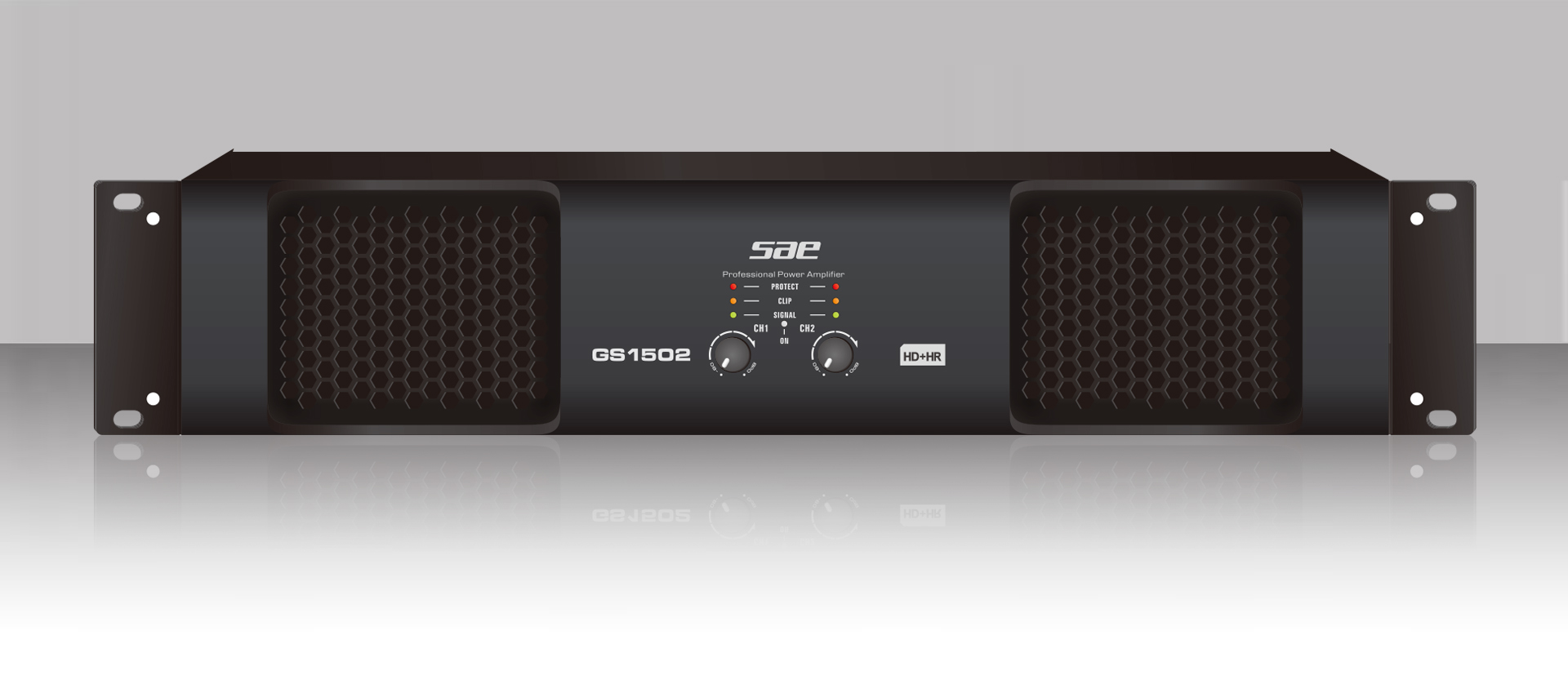

| Front panel | Front panel indicator: Clip/Protection/Signal/Power on Backlit panel/Gain Controller Knob |

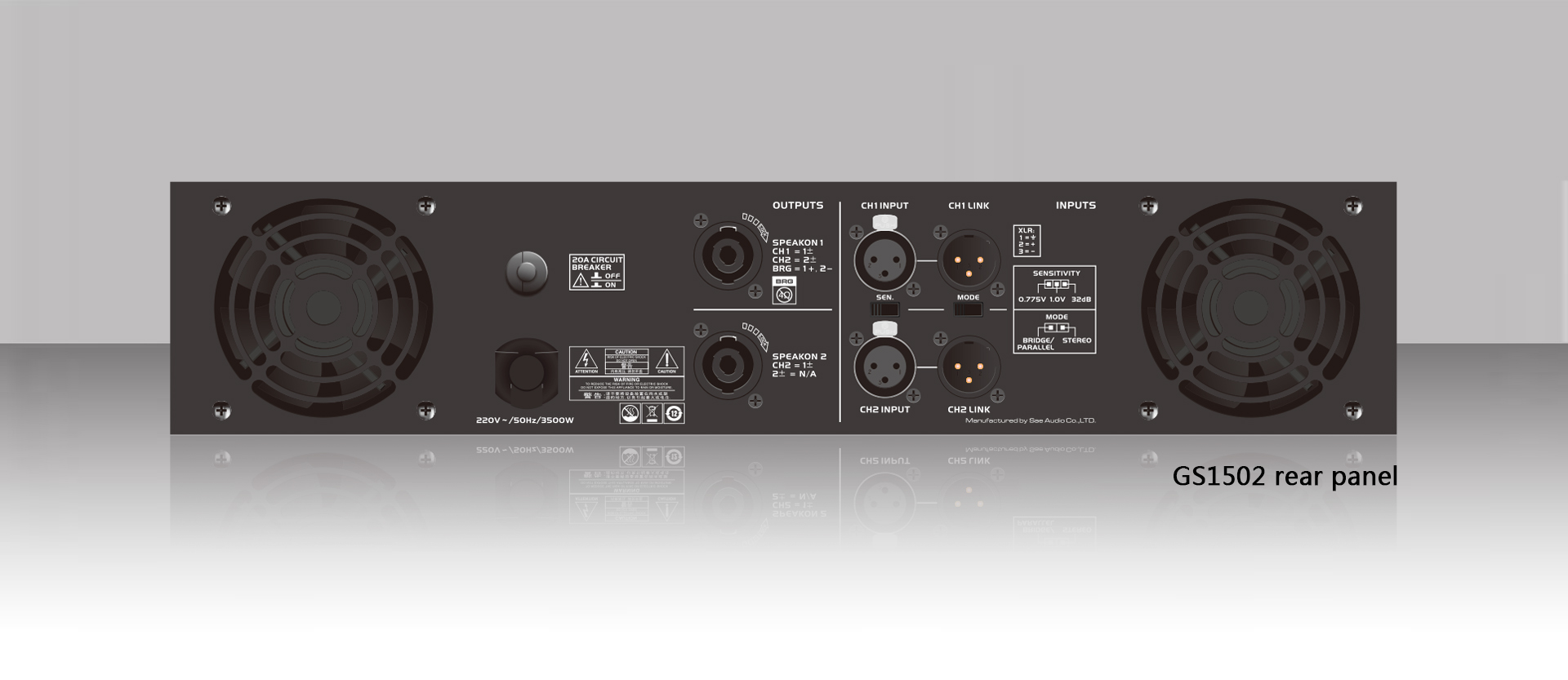

| Real panel | Stereo/Parallel/Bridge Selection Switch, Sensitivity Selection Switch, Independent Circuit Breaker |
| Dimension / Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.) | |
| Product Dimensions (mm) | W483 x H452.5x D89 |
| Packing Dimensions (mm) | W595 x H565 x D170 |
| G.W. | 28.3kg ±5% |
Remark：
1、*Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
2、**Power tested under the condition of 20ms burst, 1KHz sine wave and 1% THD.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
