CQ series Datasheet

CQ Series (New)

The new CQ is the best solution for those sound reinforcement applications requiring a multichannel amplifier with a solid and good sounding characteristic but on an affordable budget. Implementing Power Factor Correction (PFC) technology along with Universal Mains Regulated SMPS power supply and Class D power modules, the CQ series combines in the same amplifier all the functional requirements for most sound reinforcement applications.

Features

  • Class D power modules.
  • Power Factor Correction technology and Universal Mains R-SMPS.

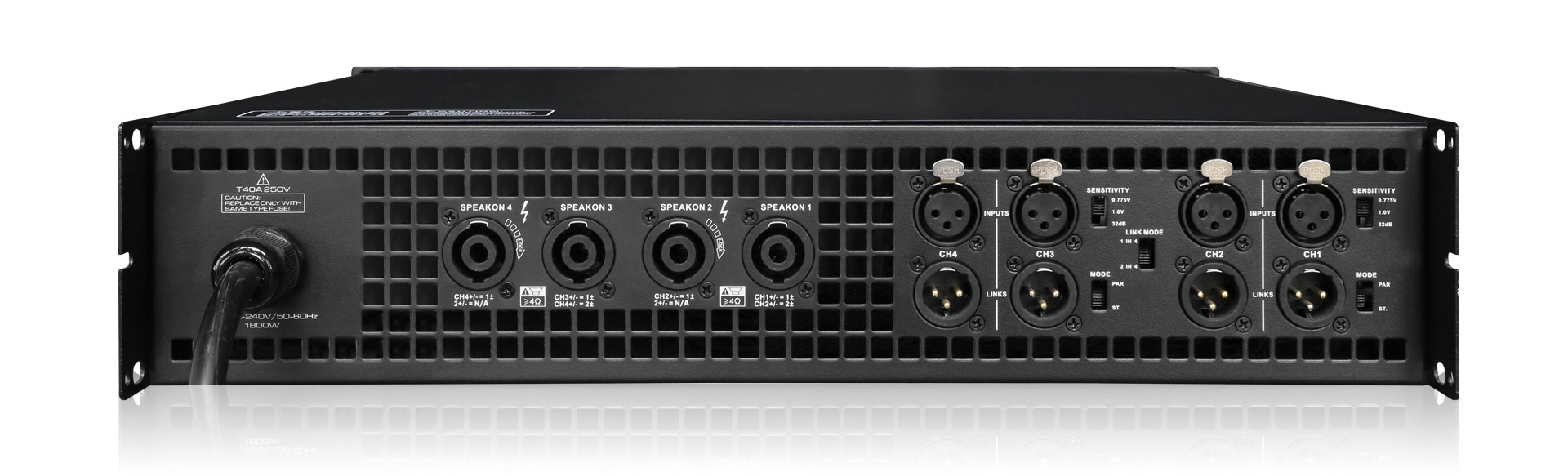

  • XLR signal input and SpeakON Nl4.
  • Input sensitivity selector on the back panel (0.775V / 1V / 32dB).
  • Routing mode selector on the back panel expect C3500Q(stereo / bridge / parallel).
  • Routing mode selector on the back panel of C3500Q (stereo / parallel).
  • Link mode selector (1-in 4-out / 2-in 4-out).
  • Channel independent protection and clip warning indicators on the front panel.
  • Channel independent power and -5dB/-10dB/-20dB/signal presence indicators on the front panel.
  • CNC alumina alloy gray panel, fashion and unique

Applications

  • Sound reinforcement applications with mid power density and good sounding requirements.
  • Small to mid sized bar/café/lounge installation.
  • Portable or rental industry PA system.

Specifications

Model C1300Q C3500Q
Output power (AC 220V / 50Hz. ±10%, All channels driven output power, THD=1%)
8Ω stereo 1300Wx4 3500Wx4*
4Ω stereo 2000Wx4 3300Wx4*
2Ω stereo 2000Wx4 N/A
8Ω bridge 3700Wx2 N/A
4Ω bridge 3700Wx2 N/A
Other specification
Frequency response 20Hz-20kHz (+0/-1dB) 20Hz-20kHz (+0/-2.5dB)
S/N rate ≥ 98dB
Input sensitivity 0.775V / 1.0V / 32dB
Input impedance(bal/unbal) 20kΩ / 10kΩ
Voltage gain (8 ohm) 42dB 47dB
Cooling Air flow from front to rear
Dimension / Weight
Product Dimension(mm) 483 x 306 x 89 483 x 484 x 89
Packaging Dimension(mm) 560 x 420 x 170 620 x 585 x 170
G.W. 9.7kg 15.5kg

Remark:
1、*,The power is tested under the condition of 40ms burst,1kHz sine wave and 1% THD.
2、Other power is tested under the condition of 43ms burst,1kHz sine wave and 1% THD.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
