M15A

Active Coaxial Enclosure Stage Monitor
_SPL max>137dB([STD]preset)
_H=40°,V=60° symmetric
_Class D amplifier module with 100~240V universal voltage
_Built-in processor to deliver impressive sound

Features

  • The M15A is an active coaxial system designed as a reference stage monitor. The enclosure features a 3″ diaphragm compression driver coaxially-loaded by a low frequency transducer in a bass-refex cabinet.
  • The M15A combines all the qualities of a reference stage monitor. It offers power (SPL) in beam width, an excellent acoustic isolation with its narrow ellipsoid directivity of x , a high immunity to feedback, an ultra-low profile and low weight for integration and handling, a rugged build and an active design with low latency preset. In addition, sound designers can take advantage of its directivity for narrow all applications.
  • The M15A can be pole-mounted using the integrated socket. Other deployments such as wall-mounted, ceiling mounted or down are quick and easy, with a complete range of rigging accessories that offer multiple set-up options and various orientations.

Datesheet Download


iwac220 Datasheet

Specifications

Acoustics M15A
Sensitivity 32dB
Short term SPL max >137dB([STD]preset)*
Coverage H40°× V60° symmetric(-6 dB)
Frequency response 55~18kHz(-10 dB)
driver 1×15″ coaxial Neodymium driver (V.C:3″; Throat:1.4″; 8Ω)
Power module
Electric Power 100~240V AC 50~60 Hz
Amplifier 2x 600W RMS @8Ω CLASS D
Cooling Natural convection
Processor
Processor 24Bit /96k DSP
DSP control TCP/IP(Windows)(Select the preset touch surface on the touch panel)
Connect/Cabinet
Connectors 2x PowerCon TRUE1(Power); 2x XLR parallel(Audio)
Cabinet Premium grade birch plywood made by CNC; Front: steel grill with coating acoustically neutral 3D fabric; Finish: black polyurea spot spray; Rigging and handling: 2 handles/2 M10 threaded inserts
Size/Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.)
Product dimension(mm) W430xH591xD384
Net weight 23kg

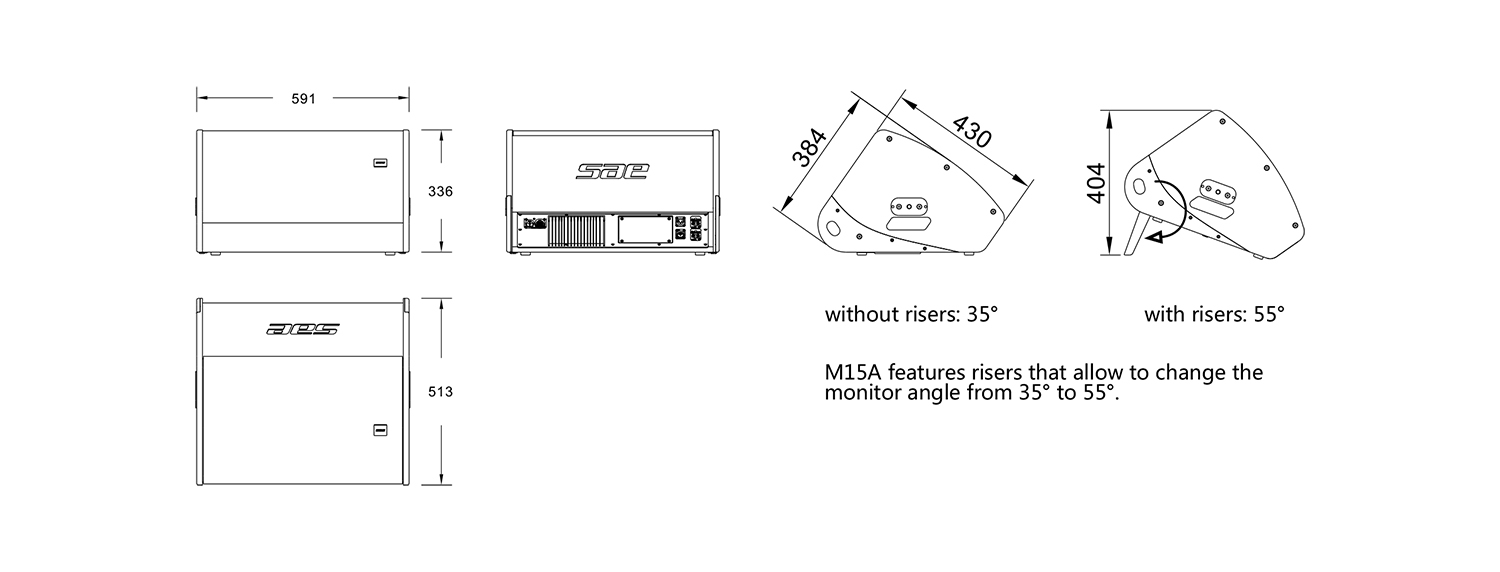

Dimensions

M15A M15A_Drawing

Remark：
1、* Peak level at 1 m under half space.
2、The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.
3、All specifications are subject to change without notice.
4、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
