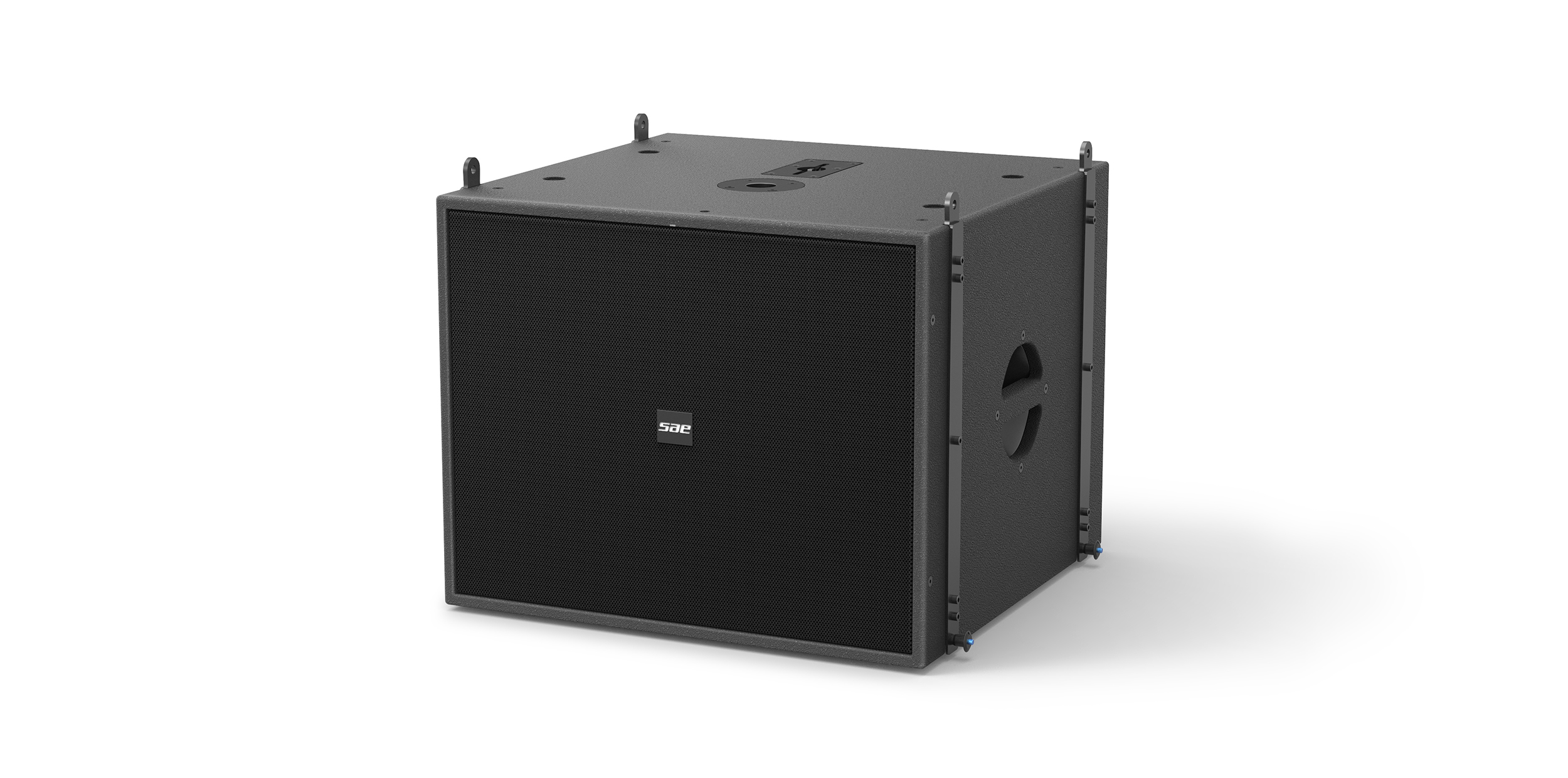

AX18
The AX18 is a touring-grade suspendable subwoofer matched for the AX12 model. It features a rainproof design, a built-in professional digital signal processor, and is driven by a high-efficiency Class D power amplifier. It comes with 4 scene presets for one-touch switching. Complete with full accessories, it is ideal for small and medium-sized commercial performances and engineering projects.Features
- Loudspeaker Configuration: Equipped with an 18″ neodymium magnet speaker with an aluminum frame and a 4″ voice coil, housed in a birch plywood enclosure with an unequal-port bass reflex structure.
- Portable for Mobile Applications: Compact and small-sized, fitted with two pull handles. It is only 63.5 cm in width and weighs just 41.5 kg, bringing great convenience for mobile rigging and installation.
- Refined Detail Design: The steel grille is fitted with a proprietary anti-vibration phase plate structure to eliminate resonance noise from the grille. The 4-point symmetric rigging design allows forward/reverse stacking or suspension mounting. It can be directly hung with theAX12-FSAmounting bracket,or via theAX12-AF hanging adapter bracket.The cabinet surface adopts a matte extra-thick polyurea coating with high-temperature adhesion, delivering excellent surface hardness,outstanding water resistance, UVresistance against sun exposure and abrasion resistance.
- Flexible Array Combination: It can be configured into a cardioid radiation array as required. Each cabinet is only 50 cm tall; stacking three units reaches a total height of just 1.5 meters. For standard installation, a cardioid stacked array of 3 pcs AX12 plus 3 pcs AX18 is recommended.
- Rainproof Design Module: The built-in 32-bit/192 kHz DSP digital signal processor supports IIR|FIR modules and PC upper computer control. The connectors adopt an IP65 fully sealed hole-less design, enabling outdoor open-air operation without an extra rain cover. The unit has 4 factory preset scene modes, switchable via the panel touch keys without computer programming.For advanced control, it can form a network with a wireless router for online tuning viaTCP/IP local area network. An online polling indicator is mounted on the front of each cabinet, which allows targeted device calling via software for controlled units.
- Multi-functionalApplication: The 18″ driver is powered by a Class D amplifier with a peak power of 2500W.An extra channel with 800W peak power is independently output via the NL4 speaker connector for connecting conventional passive loudspeakers. It can be combined with standard 35mm speaker poles to build a full-range audio system.
Datesheet Download
Datasheet
Specifications
| Acoustics | AX12 Subwoofer |
| Maximum SPL | ＞140dB( 120 preset) (Measured at 1 meter, on axis, in half-space using burst noise with a 6 dB crest factor and specified preset) |
| Frequency Range | 40~250Hz |
| Coverage Pattern | subwoofer array configuration/cardioid |
| IP Rating | IP54|IEC 60529 |
| Transducers | |
| Subwoofer | 1×18″ neodymium cone driver|V.C:4″|8Ω|Bass-reflex |
| Power amplifier module | |
| Audio Input | +12dBu@20kΩ XLR Balanced Analog (system starts limiting with broadband noise and music) |
| Power Output | 2500Wpeak(subwoofer)+800Wpeak(full range)@8Ω THD+N:1%|PFC Class-D |
| AC Input | AC96~265V/50~60 Hz Adaptive |
| Current Draw | 230V|100V:2A|4.7A(dissipation rating) |
| Cooling Type | Convection, external aluminum heat sink internal on-demand fan |
| DSP | 32bit I/O up to a sample rate of 192 kHz|139 dB DNR |
| AD/DA | 24Bit/96k sample rate|IIR|FIR Filter|Delay|Limiter |
| Panel | 4mm aluminum plate CNC|Non-porous touch panel |
| Display | power amplifier status, network control status, preset selection, Front call LED indicator(soft control) |
| DSP Control | TCP/IP(Windows PC only) |

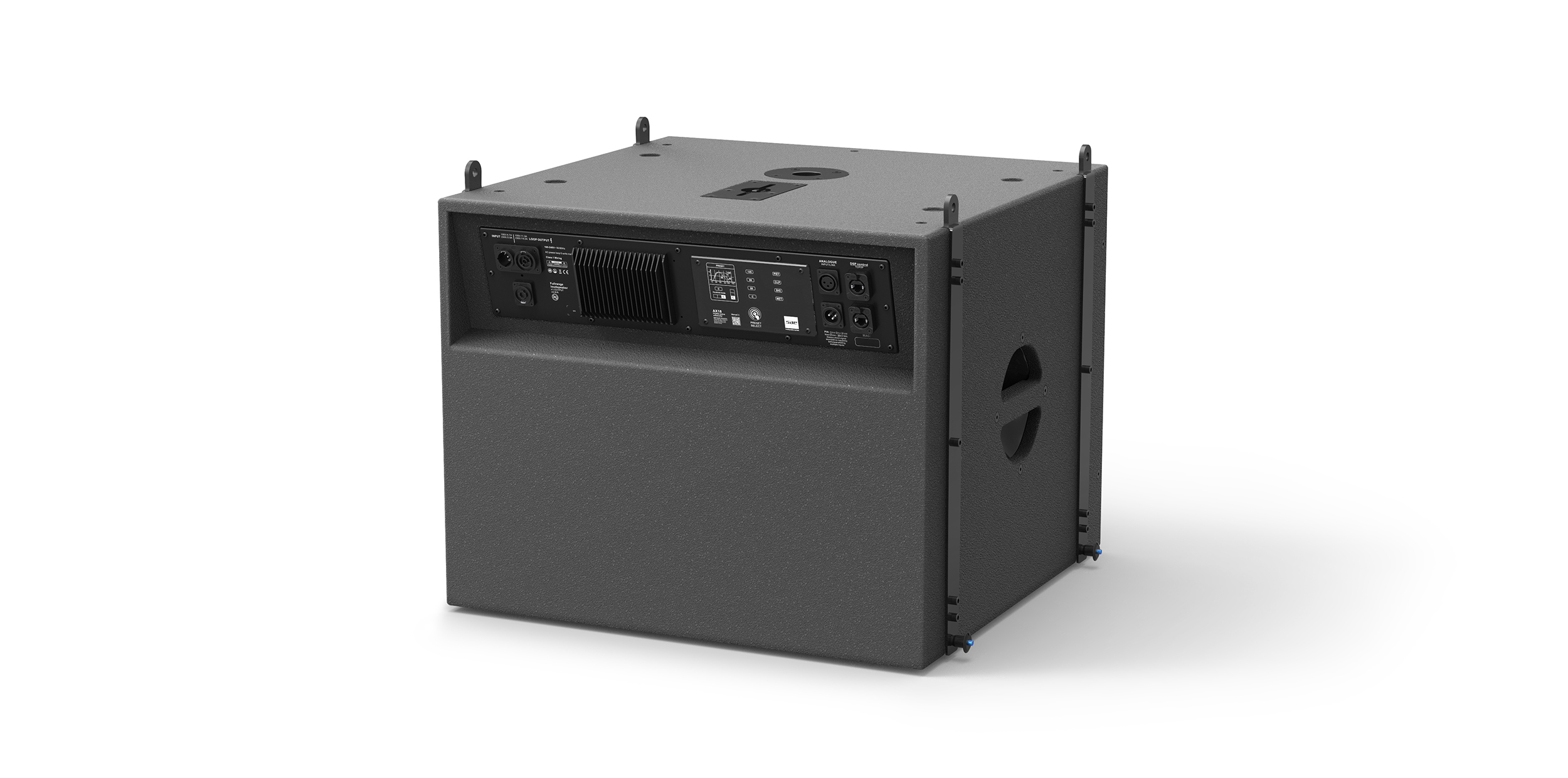

| Connectors(IP65) | AC Loop:Dual powerCON TRUE1 Audio Loop:Dual 3-pin XLR External full range loudspeaker:NL4(1±) Networking:Dual etherCON(RJ45) |
| Physical | 4-point captive rigging system 2 handles,quick release Ø10pins, steel with anti-corrosion coating; Phase plate resonance elimination technology; AX12 Stacking & Ø35+M20 support |
| Application | |
| Rigging | maximum 12 units array(AX12-AF only) |
| Cabinet | Polyurea coating;Premium birch plywood; Bass-reflex/Tow flared ends vents; 2mm Coated steel grill;Acoustically neutral 3D fabric; |
| Size/Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.) | |
| N.W / G.W | 41.5kg/ 46.8kg ±5% |

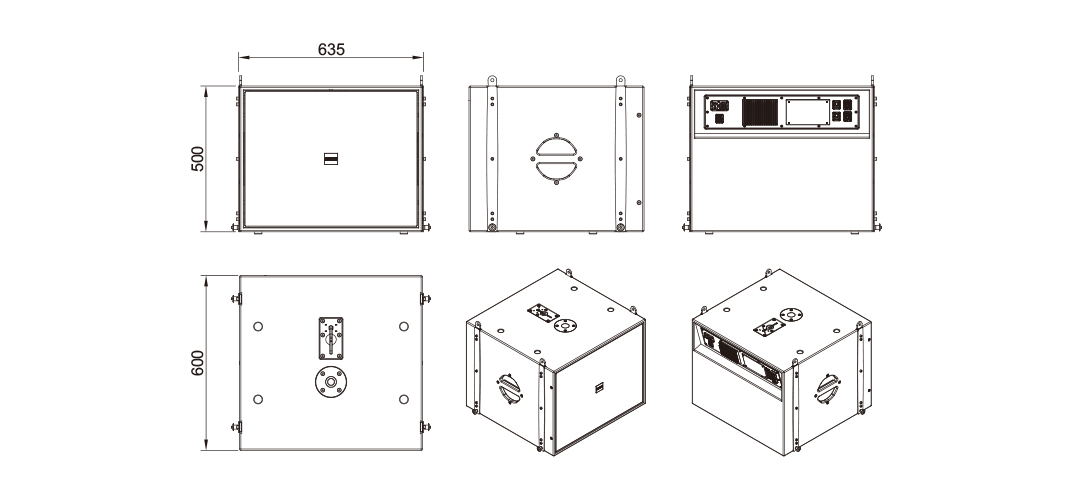

| Product Dimensions (mm) | W635mm × H500mm × D600mm |
| Packing Dimensions (mm) | L748mm × W718mm × H613mm |
Remark：
1、The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.
2、All specifications are subject to change without notice.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
